Gigabyte Aorus X570 Master review: A cost-effective motherboard for Ryzen fans

Best Prices Today: Gigabyte Aorus X570 Master

The Gigabyte X570 Aorus Master exemplifies what AMD’s Ryzen delivered to the desk: high-end efficiency with good worth to your buck.

Sure, you possibly can go for extra excessive variants, and even cheaper motherboards, however none present the satisfying mixture of options for the value as one thing just like the X570 Master.

We will go over the specs and options obtainable on the X570 Master, finest CPUs to pop into it, and the way the motherboard compares versus the latest competitors.

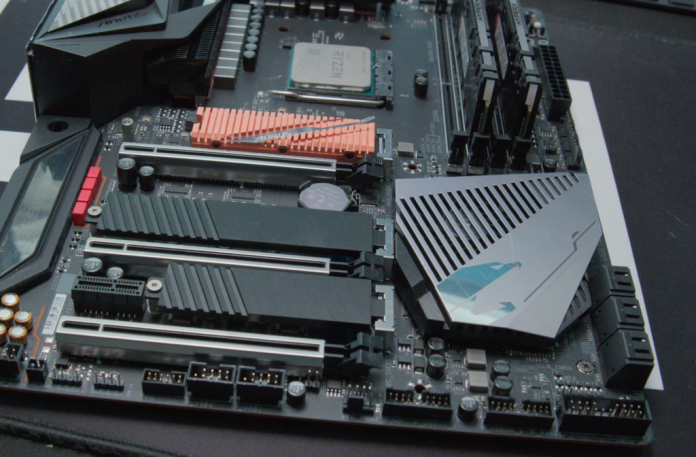

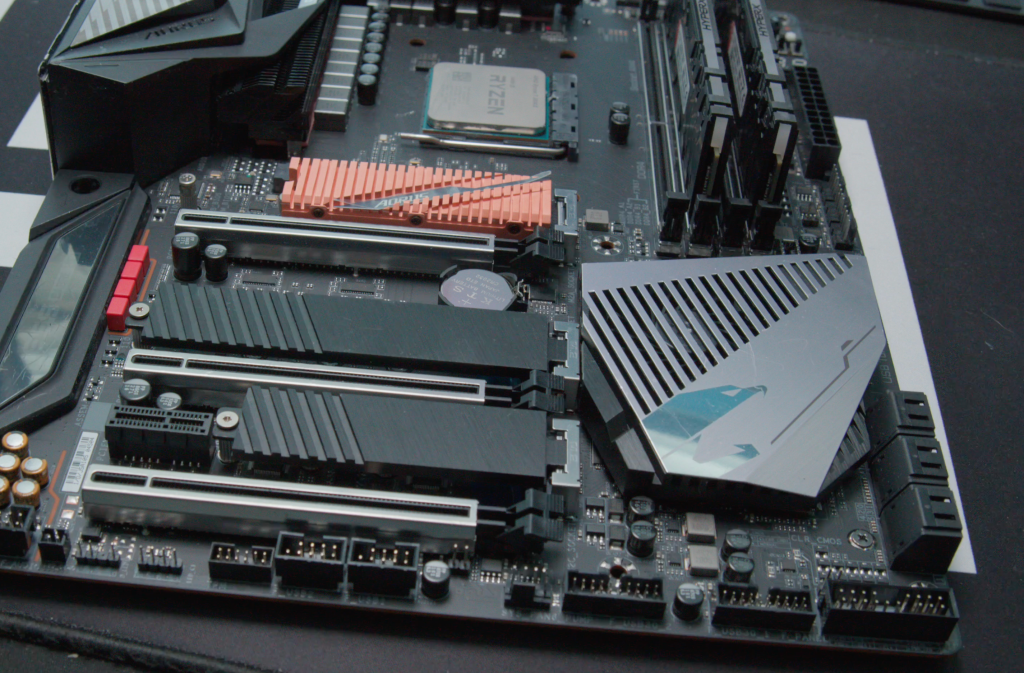

Thiago Trevisan / Foundry

Gigabyte Aorus X570 Master: The specs

It actually isn’t the newest and biggest—we’ll reserve that for Intel’s 12th-gen platform with its DDR5 and PCIe Gen 5. The X570 Master nonetheless packs a punch within the options division, and sticks to extra real looking, tried-and-true tech like DDR4.

• ATX type issue
• Support for AMD Ryzen 3000 and 5000 CPUs
• 14 section digital VRM
• DDR4
• PCIe Gen 4
• Three M.2 slots
• 10 USB ports on again, one is USB C Gen 2
• Intel Wi-Fi 6
• Realtek 2.5Gbe LAN
• RGB Fusion with RGB headers
• 6 SATA 6GB/s ports
• Integrated I/O defend
• USB Gen 2 3.2
• Q Flash Plus—replace BIOS and not using a CPU
• Dual BIOS help
• 9118 ESS Sabre DAC

Gigabyte

Gigabyte Aorus X570 Master: Unique options

You’ve seen the specs, now let’s talk about which of them may have probably the most influence on real-world use. Yes, there’s even an built-in I/O defend right here—you’ll by no means have that embarrassing mishap once more!

Positives:

1. You’ll discover succesful networking: 2.5Gbe LAN and 1Gb LAN
2. Wi-Fi 6 can also be included
3. Three M.2 slots with warmth shields, ample help for gaming builds
4. Good total 14-stage energy and VRM cooling help for even the mighty Ryzen 9 5950X
5. PCIe Gen 4 for M.2 and GPU slots
6. DDR4 solely, however available and steady efficiency win the day versus DDR5
7. Tremendous vary of CPUs to select from over time
8. Q Flash Plus—replace BIOS and not using a CPU, is useful—plus features a twin BIOS
9. Lots of inner USB headers, and fan headers for even complicated builds
10. Priced nicely at beneath $400 for a mid- to high-range motherboard with a premium really feel

Downsides:

1. Lack of DDR5 means no future-proofing
2. PCIe Gen 4 is greater than sufficient now, however Gen 5 is right here on Intel already
3. No 10Gbe LAN or Wi-Fi 6E—you’ll want a dearer motherboard for these choices
4. Plenty of USB ports, however not all are the quickest Gen 3
5. Chipset fan is right here, and is managed in BIOS
6. No future CPU upgradability after Ryzen 5000

Thiago Trevisan / Foundry

Gigabyte Aorus X570 Master: Design

Matte finishes, angular shapes, and even the Gigabyte Eagle all add to the expertise of this properly designed motherboard. Functional design parts such because the M.2 warmth shields present a pleasant aesthetic contact whereas conserving issues cool.

Tastefully finished RGB parts embody the left aspect of the motherboard, with an total monochromatic design that simply matches into most construct themes.

We’ve talked about the built-in I/O defend, which actually ought to be customary on any motherboard. The “Base plate armor” on the again additionally contributes to the premium really feel, giving the board a rugged, high-end look.

Thiago Trevisan / Foundry

Gigabyte Aorus X570 Master: Performance and BIOS

Originally meant to deal with even the Ryzen 9 3950X, this board design has tailored nicely to newer chip updates such because the newer 5950X. This motherboard is equally at residence with mid-range choices, too—completely matched with a Ryzen 5 5600X. The newly launched Ryzen 7 5800X3D can also be an amazing match for builders searching for final gaming efficiency.

With a direct 14 section digital VRM energy design, it could be lacking the 19 section of its Z690 Aorus Master brethren, but it surely’s nonetheless greater than adequate “overkill” for even the 16-core Ryzen 9 behemoth.

Thiago Trevisan / Foundry

The Gigabyte BIOS has improved over time, and it’s a reasonably easy structure for many customers. Those who want to tinker, can head to superior mode and have extra granular management over CPU and reminiscence overclocking, too.

Thiago Trevisan / Foundry

Gigabyte Aorus X570 Master: Bottom line

With AMD’s AM4 platform coming to an finish this 12 months, the X570 Gigabyte Aorus Master can nonetheless compete nicely, even in opposition to the likes of Intel’s 12th-gen PCIe and DDR5 enhancements.

In the actual world, the huge collection of CPUs, from Ryzen 3000 to 5000, coupled with an affordable price ticket hold this motherboard within the working. BIOS and efficiency will probably be extra steady, and PCIe Gen 4 NVMe efficiency is already very spectacular. DDR5 is bleeding edge, however diminishing returns make sure that you’ll possible not discover a distinction —apart from the upper price ticket.

Given that AMD has launched what is probably going the final AM4 CPU with the 5800X3D, that’s a really wise choice to pair with this motherboard. (Check out Alaina Yee’s article on 5 things to know about the 5800X3D.)

Sure, the Z690 Aorus Master packs much more high-end options—similar to 10Gbe LAN, newer Wi-Fi 6E, and DDR5—however you’ll additionally find yourself spending extra on common because of this.

The X570 Aorus Master remains to be a really respectable motherboard, with simply the best features-to-cost ratio. When you think about the huge obtainable pool of DDR4 RAM and Ryzen CPUs that at the moment are closely discounted, it’s nonetheless a good selection. Keep in thoughts that later this 12 months there will probably be new chipset upgrades for AMD’s Ryzen and X570 will probably be surpassed.
