USB-C chaos, demystified: Know what power and data you're really getting

You can simply discover laptops and desktop PCs packing USB-C port licensed for Thunderbolt 4 or USB 4. But now the following era of the usual is selecting up pace with Thunderbolt 5 (TB 5) and USB 4 model 2 (USB 4 v2).

These catapult the info switch pace from the 40 GBit/s of the earlier era all the way in which as much as 80 GBit/s. And in uneven mode, which is non-compulsory with USB 4 v2, information switch is even attainable at 120 GBit/s from the host to linked peripheral units (downstream) to allow you to run a number of high-resolution displays without delay. (In the other way, 40 GBit/s are nonetheless attainable.)

Phew! That’s a number of data. My head is spinning. And that’s why Microsoft is rolling out new requirements to end USB-C chaos on Windows 11 laptops: The state of USB-C and Thunderbolt is totally befuddling even for consultants.

At least TB 5 and USB 4 v2 stay backwards suitable. This means that you would be able to proceed to attach legacy peripherals by way of adapters — even older units with USB 2.0 ports. But there are nonetheless loads of sensible questions on USB-C, and particularly in regards to the present TB 5 and USB 4 v2 variations.

You’ll discover solutions to essentially the most urgent questions right here — for instance, find out how to discover out whether or not your units are already based mostly on the present requirements, what specs and options to search for when shopping for, and find out how to learn the new-look USB logos.

Further studying: Tested! These are the best USB-C cables for charging and data transfers

Find out USB 4 data by way of Windows

If you might have a Windows 11 pc with USB-C ports and are usually not positive whether or not the Type-C ports help USB 4, you will discover out by way of the Windows settings app. Windows 11 now features a “USB4 hubs and units” function, situated underneath “Bluetooth and units > USB.” You may get there by typing “USB4” or “Thunderbolt” into the search bar.

There, you will discover out which model of USB 4 is supported by your system. This is as a result of the “USB4 version” line accommodates exact data. If you see “1.0” there, the USB host controller offers a most bandwidth of 40 GBit/s. With “2.0” listed, you have already got a system that helps USB 4 model 2 (USB 4 v2) at twice the pace — presumably even with the non-compulsory uneven mode.

At the identical time, Windows 11 additionally offers details about linked units in the intervening time. For instance, in case you plug an exterior USB 4 or Thunderbolt 4/5 SSD into the Type-C port after which click on on “Refresh” subsequent to “USB4 area data,” the identify of the linked system will seem underneath “USB4 host router data.”

If you click on on this or on the plus signal on the finish of the road, you’ll obtain extra data: “Current bandwidth (down/up)” reveals what pace is at present attainable in your USB-C port with the system. Somewhat confusingly, the data does not need to correspond to the utmost pace that the system can usually deal with. The mixture of interface and linked system is displayed.

Please be aware: This Windows 11 function is simply obtainable for USB4-compatible computer systems. It isn’t obtainable for PCs with USB 2.0 and 3.0 ports.

New USB logos present a better overview

The USB Implementers Forum (USB-IF), which is liable for the usual, tailored the USB labels once more originally of 2025 to make it simpler to see what a USB-C system or cable helps before you purchase it. New logos ought to present at a look what pace and efficiency could be anticipated from USB Type-C merchandise.

In doing so, the USB-IF desires to counteract the continuously voiced criticism that the countless variations create extra confusion than readability relating to Type-C.

Instead of technical phrases, the brand new logos give attention to the connector’s key capabilities. Data switch pace and charging efficiency have to be instantly recognizable. Ideally, you will note the pace data subsequent to “USB” on the product packaging – for instance “80 Gbps.” This lets that the system is licensed for information transfers of as much as 80 GBit per second.

IDG

Under this new scheme, the USB-C connections immediately on a tool (comparable to a pocket book or desktop PC) ought to make the utmost switch charge clear by way of a written quantity. The reform of the logos additionally impacts the USB-C cables; the info pace and the ability score have to be indicated on the plugs – each clearly recognizable, one under the opposite.

For instance, a USB-C cable labeled “80 Gbps 240 W” implies that the twine can transmit information at as much as 80 Gbps and cost units with a most of 240 watts.

If you possibly can solely cost with a cable, the data on the switch pace is omitted. That makes it instantly clear that no information could be transferred by way of the cable in query, or that solely very gradual transfers at USB 2.0 pace are attainable.

The commendable initiative has one downside: The USB committee leaves it as much as the producers to determine whether or not or to not use the brand new logos. In any case, you possibly can make sure that a product with the brand is extra reliable than a tool or accent with out the brand.

Further studying: 9 nifty USB-C gadgets you didn’t know you needed

The proper cables and energy provide items for charging by way of USB-C

More and extra units are utilizing USB-C plugs for charging. It’s no shock; a European Union regulation now stipulates that new units should be capable to be charged by way of USB-C.

There is a transition interval for notebooks that ends on April 28, 2026. After this date, proprietary plug/energy provide combos will even be a factor of the previous. All pocket book batteries should be capable to be charged by way of USB-C.

Although the USB-C connector is used for the ability provide, the charging processes are regulated in a separate specification: USB Power Delivery (USB PD).

It offers for various charging profiles (energy profiles). In the prolonged model (USB PD EPR, Extended Power Range), the charging energy goes as much as 240 watts. This implies that even power-hungry gaming notebooks could be provided with adequate vitality.

Further studying: The bewildering world of USB-C charging, explained

But this requires the charging cable to have the ability to sustain. To do that, it have to be outfitted with a special chip called an e-marker, from a present of 5 amps. This shops the capabilities of the cable, such because the charging profiles or the utmost energy provide capability.

If you don’t wish to work your means via the PD specs, you need to at the very least go for an influence provide unit from 45 watts or 60 watts when in search of an all-round energy provider. With this charging energy, you possibly can energy a compact notebook and cost the vast majority of smaller units comparable to smartphones or tablets.

More highly effective cell computer systems require a 100 watt energy provide unit (20 volts at 5 amps). An overview of PD charging profiles and appropriate instance units could be discovered within the desk.

Overview: Charging efficiency by way of USB Power Delivery (PD)

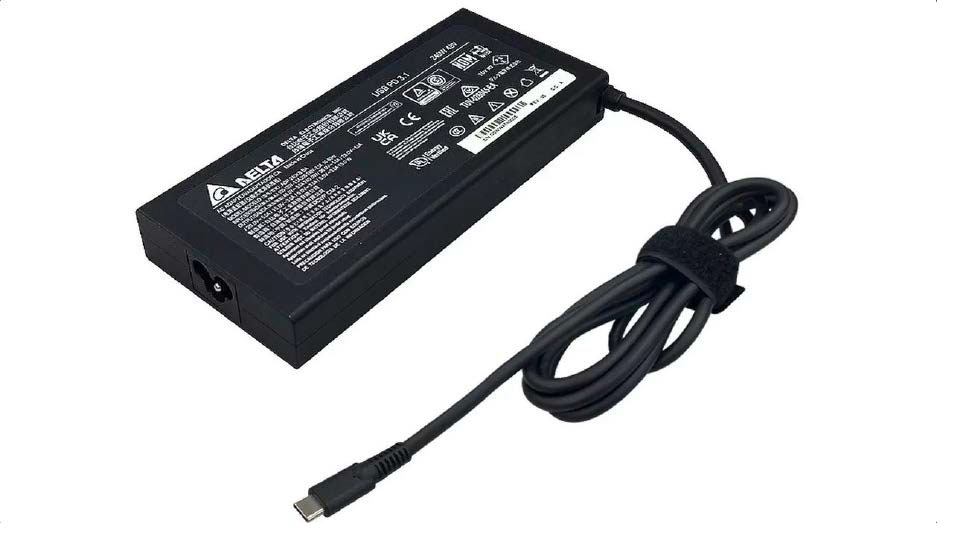

Even 5 volts at 48 amps for as much as 240 watts by way of a USB-C cable, which was unattainable till lately, is now attainable. One of the primary energy provide items for this may be discovered within the Delta ADP-240KB BA.

IDG

You can name up all USB EPR-certified charging profiles. But Delta’s 240W USB-C charging brick is clearly cumbersome and fewer than splendid when travelling.

Nevertheless, there isn’t a doubt as as to whether its charging cable is designed for the ability. It’s firmly connected to the ability provide unit! The solely factor beefier than this do-it-all USB-C charger is its value: $150.

USB 4 v2 and TB 5 uncommon thus far

If you’re interested by shopping for a brand new pc, you additionally wish to be updated with the most recent exterior interfaces.

At the second, the want remains to be proving to be a problem. For instance, current notebooks with Intel CPU era of the Core Ultra 200 sequence (codename: Arrow Lake H and HX) are labelled “Thunderbolt 5 ready.” This implies that the processors are mainly ready for TB 5 — in different phrases, they help sufficient PCI Express lanes to supply the bandwidth.

However, they require an extra chip in an effort to fulfil the TB 5/USB 4 v2 specs. One risk is Intel’s controller JHL9580 (codename: Barlow Ridge), however it’s as much as the PC producers to determine whether or not to put in it. Because of that, we’ve thus far solely discovered a number of pocket book fashions with Thunderbolt 5 Type-C interfaces, comparable to the brand new Razer Blade 18 and the MSI Vector 16 HX.

These are each highly effective gaming laptops with costly value tags. With costs beginning round $3,000, the extra prices for putting in the TB5 controller chip don’t play such a big function within the total calculation. This additionally applies in the same approach to the Apple MacBook sequence with M4 processors, which additionally help TB 5.

At the identical time, the excessive necessities of TB 5 and USB 4 v2 by way of information charges, loading pace, and video indicators imply that adequate cooling have to be supplied. An extra fan might even need to dissipate the waste warmth exterior the PC’s case. This is a vital level, particularly for very slim and light-weight laptops, which has a direct affect on weight and noise.

Because of that, we’re seeing laptop computer makers proceed to make do with the older TB 4/USB 4 normal and most information charges of 40 GBit/s for ultra-mobile computer systems.

Retrofitting USB-C sockets for TB 5/USB 4 v2

In distinction to notebooks, new desktop PCs usually tend to have a USB-C interface that already helps TB 5/USB 4 v2. This implies that it will probably presumably be retrofitted with a PCIe growth card.

Again, the motherboard should at all times be certified as “Thunderbolt 5 ready.” This ensures that the mandatory Thunderbolt header is accessible. At the second, that is more than likely to be the case with high-end PCs, comparable to methods with Intel Z890 mainboards.

IDG

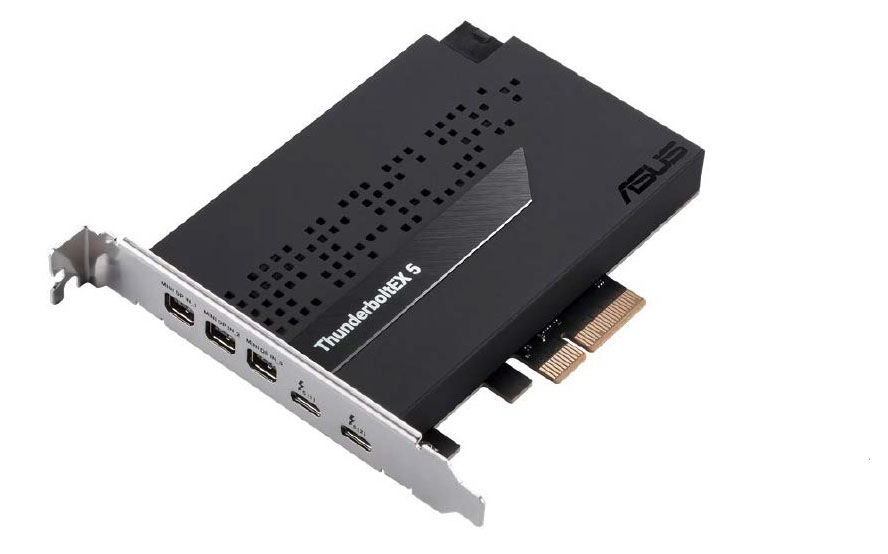

You additionally want a free PCIe 4.0 slot with 4 lanes (x4). If these necessities are met, you should purchase a corresponding PCI-e add-in card, just like the $140 Asus Thunderboltex 5.

The JHL9580 “Barlow Ridge” controller chip already talked about is used right here. In addition to the complete Thunderbolt 5 information switch pace, the 2 TB-5 sort C sockets additionally present a quick charging as much as 130 watts and an influence provide of as much as 96 watts for a linked system.

There are additionally three Mini-Displayport 2.1 ports, which you need to use to attach as much as three displays with 8K decision and a refresh charge of 60 hertz.
